Goodman Furnace Service Manual: A Comprehensive Guide
Navigating Goodman furnace issues? This manual, bolstered by resources like YouTube tutorials and specialized blogs, offers detailed troubleshooting for common problems.
From ignition failures to blower motor malfunctions, pinpoint solutions are available. Access wiring diagrams and parts lists for efficient repairs and maintenance.
Understanding Your Goodman Furnace
Goodman furnaces are renowned for their efficiency and reliability, but understanding their core components is crucial for effective servicing. These systems utilize a gas valve to regulate fuel flow, a flame sensor to ensure safe combustion, and a blower motor to distribute heated air throughout your home.
Common issues, like a furnace that won’t light or fails to turn on, often stem from problems within these key areas. Online resources, including YouTube videos and dedicated blogs, demonstrate how to diagnose these faults.
Proper maintenance, such as regular filter replacements and burner cleaning, significantly extends the lifespan of your Goodman furnace. Familiarizing yourself with your specific model – identified by its model number – allows you to access tailored service manuals and parts lists, streamlining any necessary repairs or upkeep.
Locating the Goodman Furnace Model Number
Identifying your Goodman furnace’s model number is the first step towards successful servicing and repair. This unique identifier unlocks access to specific manuals, wiring diagrams, and compatible parts lists – essential resources for any troubleshooting effort.
Typically, the model number is found on the unit’s nameplate, a metallic label affixed to the furnace casing. Common locations include the inside of the access panel, on the blower compartment door, or near the gas valve.
Carefully examine all sides of the furnace for this label. The model number is usually a combination of letters and numbers, providing precise details about your specific unit. Having this information readily available will significantly expedite the process of finding relevant service documentation and ordering replacement parts when needed.
Safety Precautions Before Servicing
Prioritizing safety is paramount when servicing a Goodman furnace. Before commencing any work, always disconnect the electrical power supply at the breaker box to prevent electric shock. Turn off the gas supply to the furnace, typically located near the gas valve, to eliminate the risk of gas leaks or explosions.
Allow the furnace to cool completely before touching any components, as heated surfaces can cause burns. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to shield against debris and potential hazards.
Ensure adequate ventilation in the work area, especially when dealing with gas appliances. If you smell gas, immediately evacuate the area and contact your local gas company. Never attempt repairs if you are uncomfortable or lack the necessary expertise; consult a qualified HVAC technician.
Common Goodman Furnace Problems
Goodman furnaces, while reliable, can experience several common issues. A frequent complaint is the furnace failing to turn on, often due to power supply problems or a faulty thermostat. Another prevalent issue is the furnace not lighting, potentially stemming from a pilot light malfunction or a defective igniter.
Flame sensor problems are also common, preventing the furnace from recognizing a flame and shutting down as a safety measure. Gas valve issues can restrict gas flow, hindering ignition. Finally, blower motor malfunctions can lead to insufficient airflow or complete blower failure.
These problems often require diagnosis and repair, and understanding their root causes is crucial for effective troubleshooting; Online resources highlight these issues frequently.
Furnace Won’t Turn On
When a Goodman furnace refuses to power on, several factors could be at play. First, verify the power supply – check the circuit breaker dedicated to the furnace and ensure it hasn’t tripped. A faulty thermostat is another common culprit; confirm it’s set to “heat” and the temperature is appropriately raised.
Inspect the furnace’s on/off switch, often located near the unit, to ensure it’s in the “on” position. A blown fuse within the furnace itself can also prevent operation. Wiring issues, such as loose connections, should be examined by a qualified technician.
Resources suggest a complete power cycle – turning off all power to the furnace for a few minutes – can sometimes resolve minor electrical glitches.
Furnace Won’t Light (Pilot Light Issues)
If your Goodman furnace isn’t lighting, particularly concerning the pilot light, a few key areas require investigation. A common cause is a faulty gas valve, preventing gas from reaching the pilot assembly. Check the gas supply to ensure it’s turned on and there are no leaks. A dirty or malfunctioning pilot assembly can also hinder ignition; cleaning or replacing it may be necessary.
The flame sensor plays a crucial role – if it doesn’t detect a flame, it will shut off the gas supply as a safety measure. Resources highlight that a weak thermocouple can also cause intermittent pilot light issues.
Always prioritize safety; if you smell gas, immediately shut off the gas supply and contact a qualified technician.
Flame Sensor Problems
A malfunctioning flame sensor is a frequent culprit when a Goodman furnace experiences ignition or operational issues. The flame sensor’s primary function is to verify the presence of a flame; if it doesn’t detect one, it signals the gas valve to shut off, preventing a potentially dangerous gas buildup. Dirty flame sensors are a common problem, often coated with carbon buildup that insulates them, hindering their ability to detect the flame.
Cleaning the flame sensor with fine steel wool or sandpaper can often resolve this. However, a damaged or failing flame sensor will require replacement. Online resources emphasize the importance of proper grounding for the flame sensor to function correctly. A faulty ground can lead to false readings and intermittent operation.
Gas Valve Issues
Problems with the gas valve can manifest as a furnace that won’t light, or one that lights briefly then shuts off. A faulty gas valve may not open fully, restricting gas flow to the burners, or it might fail to stay open once ignited. Testing the gas valve requires a multimeter to check for continuity and proper voltage. Safety is paramount when working with gas valves; always shut off the gas supply before attempting any repairs.
A clicking sound from the valve might indicate an electrical issue, while no sound could suggest a lack of power. Complete valve failure necessitates replacement by a qualified technician. Online resources highlight the importance of verifying the correct gas type (natural gas or propane) setting on the valve before operation, as an incorrect setting can cause significant issues.
Blower Motor Malfunctions
Blower motor issues present as no airflow, weak airflow, or unusual noises. A failing blower motor can stem from capacitor failure, motor burnout, or obstructions in the blower wheel. Capacitors are frequently the culprit, and a simple test with a multimeter can confirm their functionality. Motor burnouts typically require complete motor replacement, while obstructions necessitate cleaning the blower assembly.
Listen for squealing or grinding sounds, indicating bearing problems. Check for loose wiring or a tripped circuit breaker. Resources emphasize the importance of disconnecting power before inspecting the blower motor. Proper airflow is crucial for heat distribution, and a malfunctioning blower motor can lead to overheating and system inefficiency. Always consult a professional for complex repairs.
Troubleshooting Steps
Effective troubleshooting begins with a systematic approach. First, verify the power supply – check the circuit breaker and furnace switch. Next, inspect the gas supply, ensuring the gas valve is open and there are no leaks. Utilize a multimeter to test the flame sensor for continuity, as a faulty sensor prevents ignition. Evaluate the gas valve operation by observing its response to thermostat calls for heat.
Diagnosing blower motor problems involves checking for obstructions and testing the motor windings. Online resources, like YouTube tutorials, demonstrate these steps visually. Remember safety first – disconnect power before any inspection. Document each step and observation to aid in accurate diagnosis and repair.
Checking the Power Supply
A reliable power supply is fundamental for furnace operation. Begin by verifying the circuit breaker dedicated to the furnace hasn’t tripped. Reset it if necessary, but investigate the cause of the trip if it recurs. Inspect the furnace’s disconnect switch, typically located near the unit, ensuring it’s in the “on” position. Use a non-contact voltage tester to confirm power is reaching the furnace control board.
Check the fuse on the control board itself; a blown fuse indicates a potential electrical issue. Consult the wiring diagram to identify the correct voltage levels. If power is absent despite these checks, consult a qualified electrician. A faulty power supply can mimic other problems, so thorough verification is crucial.
Inspecting the Gas Supply
A consistent gas supply is vital for proper furnace function. First, verify the main gas shut-off valve is fully open. Then, check the gas valve at the furnace itself, ensuring it’s also open. Smell for any gas odors – if detected, immediately shut off the gas supply and contact your gas company or a qualified technician.
Inspect the gas piping for any visible damage or leaks. A soapy water solution can be applied to connections; bubbles indicate a leak. Ensure the gas pressure is within the manufacturer’s specified range (refer to the furnace’s data plate). Low gas pressure can prevent ignition or cause incomplete combustion. Never attempt to repair gas lines yourself; always call a professional.
Testing the Flame Sensor
The flame sensor is crucial for safety, verifying a stable flame. To test, disconnect the wire from the flame sensor and use a multimeter set to measure resistance. A reading typically falls between 100 and 300 ohms; an open circuit indicates a faulty sensor. Visually inspect the sensor for corrosion or buildup – clean with fine steel wool if necessary.
Reattach the wire and observe the furnace during a heating cycle. If the furnace still fails to stay lit, temporarily bypass the flame sensor (with caution!) to see if it resolves the issue. If bypassing works, the sensor is definitively bad. Always replace a faulty flame sensor with a Goodman-approved part to maintain safety and efficiency.
Evaluating the Gas Valve Operation
Proper gas valve function is vital for safe furnace operation. Begin by visually inspecting the valve for any physical damage or gas leaks – use a leak detection solution, never a flame! With the power off, carefully check the valve’s wiring connections, ensuring they are secure and free from corrosion.
During a heating cycle, listen for a distinct “click” sound as the valve opens. If no click is heard, the valve may be electrically faulty. A multimeter can test the valve’s coil for continuity. Low voltage reaching the valve can also indicate a control board issue. If the valve fails to open, or gas isn’t flowing, it requires professional replacement – do not attempt repairs yourself!
Diagnosing Blower Motor Problems
Blower motor issues manifest as no airflow, weak airflow, or unusual noises. First, verify power is reaching the motor. Use a multimeter to check voltage at the motor terminals. If power is present, but the motor doesn’t run, inspect the motor capacitor – a common failure point; A bulging or leaking capacitor needs replacement.
Listen for humming sounds, which suggest a seized motor or failing bearings. Attempt to manually rotate the blower wheel; resistance indicates a problem. Check the motor’s wiring connections for looseness or corrosion. If the motor runs intermittently, suspect a faulty motor control board or wiring harness. Professional diagnosis and repair are recommended for complex blower motor issues.
Goodman Furnace Service Manual Resources
Accessing reliable information is crucial for effective service. Goodman offers official manuals online, providing detailed specifications and troubleshooting guides for specific models. YouTube channels, like those featuring Rory Birch, offer visual demonstrations of common repairs, such as addressing pilot light issues. Websites compiling information, like those found through search results, can supplement official documentation.
Wiring diagrams and schematics are essential for understanding the furnace’s electrical system. Parts lists, often available online, simplify ordering replacement components. Utilize these resources to accurately diagnose problems and perform repairs. Remember to always prioritize safety and consult a qualified technician when dealing with complex issues or gas connections.
Official Goodman Manuals Online
Goodman’s official website is the primary source for comprehensive service documentation. These manuals provide model-specific details, including detailed parts breakdowns, wiring diagrams, and troubleshooting flowcharts. Accessing these resources directly ensures accuracy and avoids reliance on potentially outdated or incorrect information found elsewhere.
Look for a dedicated “Support” or “Resources” section on the Goodman website to locate manuals. You’ll typically need your furnace’s model number to find the correct documentation. These manuals cover a wide range of topics, from routine maintenance procedures to complex repair instructions. Utilizing official Goodman resources is the best practice for safe and effective furnace servicing, guaranteeing compatibility and adherence to manufacturer specifications.
Wiring Diagrams and Schematics
Accurate wiring diagrams are crucial for diagnosing and repairing Goodman furnace electrical issues. These schematics illustrate the connections between components, enabling technicians to trace circuits and identify potential faults. Goodman’s official service manuals contain detailed wiring diagrams specific to each model. However, supplemental diagrams can sometimes be found on HVAC-focused forums and online resources.
Understanding these diagrams requires a basic knowledge of electrical principles. Pay close attention to color coding, terminal designations, and component symbols. Incorrect wiring can lead to further damage or safety hazards. When working with electrical components, always disconnect power before making any connections or repairs. Utilizing clear, model-specific schematics is paramount for safe and effective troubleshooting.
Parts Lists and Ordering Information
Locating replacement parts for your Goodman furnace is essential for effective repairs. Goodman’s official service manuals typically include detailed parts lists, identifying each component with a unique part number. These part numbers are crucial when ordering replacements from authorized Goodman distributors or online retailers.
Several online platforms specialize in HVAC parts, offering a wide selection of Goodman components. When ordering, verify the part number against your furnace’s model and the manual’s parts list to ensure compatibility. Beware of counterfeit or substandard parts, as they can compromise performance and safety. Always prioritize genuine Goodman parts for optimal reliability and longevity. Maintaining a record of frequently replaced parts can streamline future repairs.
Routine Maintenance Procedures
Consistent maintenance extends your Goodman furnace’s lifespan and optimizes efficiency. A core procedure is filter replacement, ideally monthly during peak usage, preventing airflow restriction and improving air quality. Regularly cleaning the burners – annually – ensures proper combustion and minimizes the risk of carbon monoxide buildup. Inspecting the vent system for blockages or damage is also vital for safe operation.
Professional annual inspections are recommended, encompassing a thorough assessment of all components, including the blower motor, gas valve, and heat exchanger. Addressing minor issues promptly prevents them from escalating into costly repairs. Following these procedures, detailed in the Goodman service manual, guarantees reliable heating and reduces energy consumption.
Filter Replacement

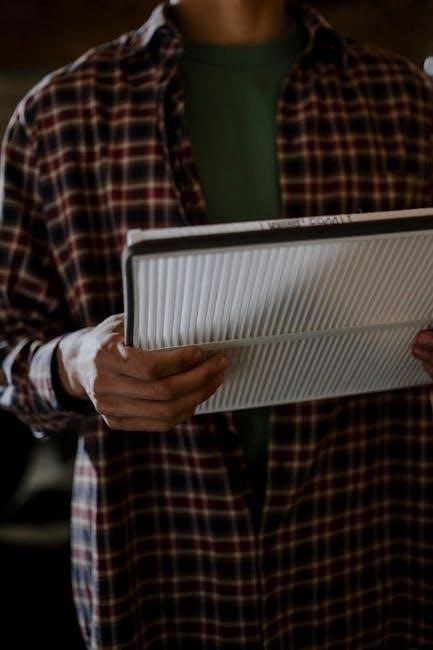

Replacing the air filter is the most crucial routine maintenance task for your Goodman furnace. A dirty filter restricts airflow, forcing the blower motor to work harder, reducing efficiency, and potentially leading to overheating and failure. Frequency depends on usage and air quality, but monthly checks during peak heating season are recommended.
Locate the filter compartment, usually near the blower motor. Note the filter size and type (often printed on the frame) before removal. Install a new filter with the airflow direction arrow pointing towards the furnace. Using a high-efficiency particulate air (HEPA) filter can improve air quality, but may restrict airflow more, requiring more frequent changes. Regular filter replacement ensures optimal performance and prolongs furnace life.
Cleaning the Burners
Maintaining clean burners is essential for efficient combustion and safe operation of your Goodman furnace. Over time, soot and debris can accumulate, obstructing gas flow and causing incomplete combustion, leading to carbon monoxide production. Always disconnect power and gas supply before cleaning!
Carefully remove the burner assembly, following the instructions in your specific furnace model’s manual. Use a soft brush and vacuum cleaner to gently remove soot and debris from the burners and burner ports. Avoid using abrasive cleaners or tools that could damage the burners. Inspect the burners for cracks or corrosion; replace damaged components; Reassemble the burner assembly carefully, ensuring proper alignment. Regular cleaning ensures optimal heating performance and safety.
Inspecting the Vent System
A properly functioning vent system is crucial for safely expelling combustion gases from your Goodman furnace. Regular inspection prevents carbon monoxide buildup, a serious health hazard. Always disconnect power before inspection! Begin by visually examining the entire vent system – from the furnace connection to the exterior vent cap – for any signs of damage, such as rust, corrosion, or loose connections.
Check for obstructions like bird nests or debris blocking the vent. Ensure all joints are securely sealed to prevent gas leaks. Look for any signs of water damage or condensation. If you notice any issues, immediately address them or contact a qualified HVAC technician. A compromised vent system can render your furnace unsafe and inefficient.
